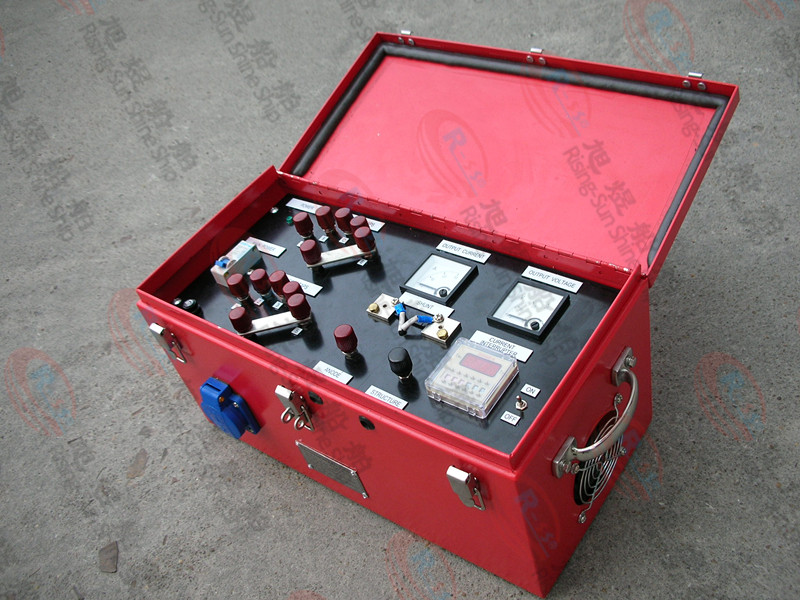

A portable ICCP Box can provide a wide range of portable DC power provider in a variety of cathodic protection testing scenarios. The box can provide 50 volt, 50amp maximum DC output in 25 of adjustment, and has the solid state variable interrupter.

All electrical connections are double-nutted or soldered, It has simple structure, convenient operation and high reliability. All the components can resist high temperature, using short jumper to adjust the output voltage.

✦Technical Data
AC inputSingle phase100 ~240VAC, 50/ 60 Hz   Three phase is optional

Maximum DC Voltageavailable per request

Maximum DC Currentavailable per request

size（W*D*H）mmavailable per request

Maximum Wattage1500W

Control mode25-step voltage control link bar taps, stepless is optional

InterrupterSolid state timer relay , accuracy 0.1s

Displayoutput current, output voltage, runtime

CoolingAir-cooler

ProtectionRCCD/MCB and fuse protection, Surge suppression, Lightning Arrestors

measurementAccessible front panel Total precision shunt

Standard ControlConstant voltage, stepless adjustment is optional

Monitoring4~20mA, relay dry contact

Ripple in rated power≤5%(3 Phase), ≤10%(1 Phase)

Efficiency≥80%

Operation TemperatureMax 50℃，Min. -20℃

Current limitProtection against current overloading

OptionalRemote Monitoring and Control
