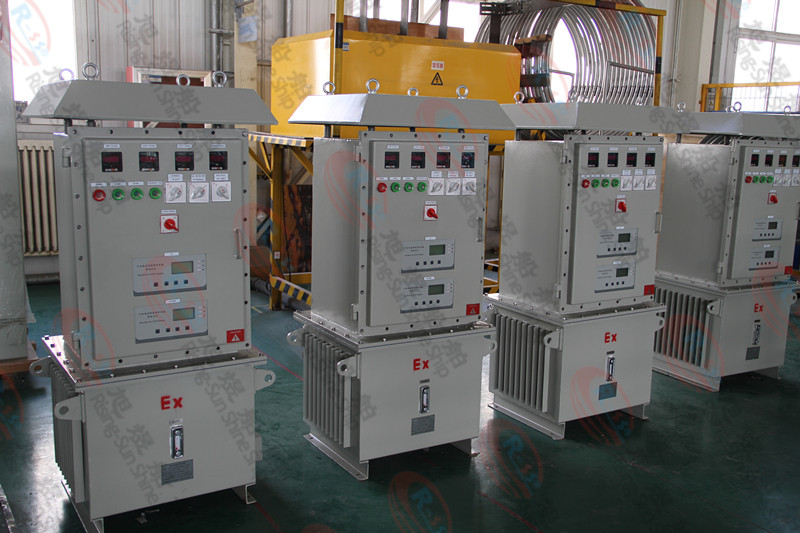

Explosion-Proof Transformer Rectifier

Explosion-Proof Transformer Rectifier

0.00
0.00


Explosion-Proof Transformer Rectifier

EPTR

EPTR Introduction

Explosion-Proof Transformer Rectifier can adopt both analog and digital circuit scheme. It should be stable,
strong anti-interference, and qualified, so the equipment is suitable for the hazard environment. R-SS has

the ATEX certificate and CNEX certificate, which stand for the leading level in the world.

Standard Features


  Single or 3-phase input
  Plinth mounted
  Dry powder coated enclosure
  Fully magnetic circuit breaker
  Meters, indicators, buttons, and
switches are Explosion-Proof
Input and output lightning arrestors
Constant current mode, accuracy ≤±1%
Constant potential precision, ≤5mV
Constant potential mode, protection potential range - 3000 mv~ + 3000 mv
  Heavy duty transformer with 20% over design capacity
Interrupter mode, time variable
DC output volt ,amp and potential meters, with +/- 1.5% accuracy
  Ripple: 3 phase, ≤5%, single phase, ≤10%
Transformer: min. 95% efficient, Class up to “H” rated
  When the output current or output voltage
exceed 100%-110% of rated value, current
down to zero and the fault light on
Lack-phase alarm
Temperature high alarm
Over/Under potential limited alarm
  IP65, NEMA4x
  4~20mA transmitter
If digital scheme, LCD controller can show
more interactive information.
Sunshade, outdoor normally provided.
